Master tool set contains a comprehensive set of tools to perform camshaft timing on M60 engines and camshaft + VANOS timing on M62 Engines.
M60 M62 Camshaft Alignment / Timing Tools:

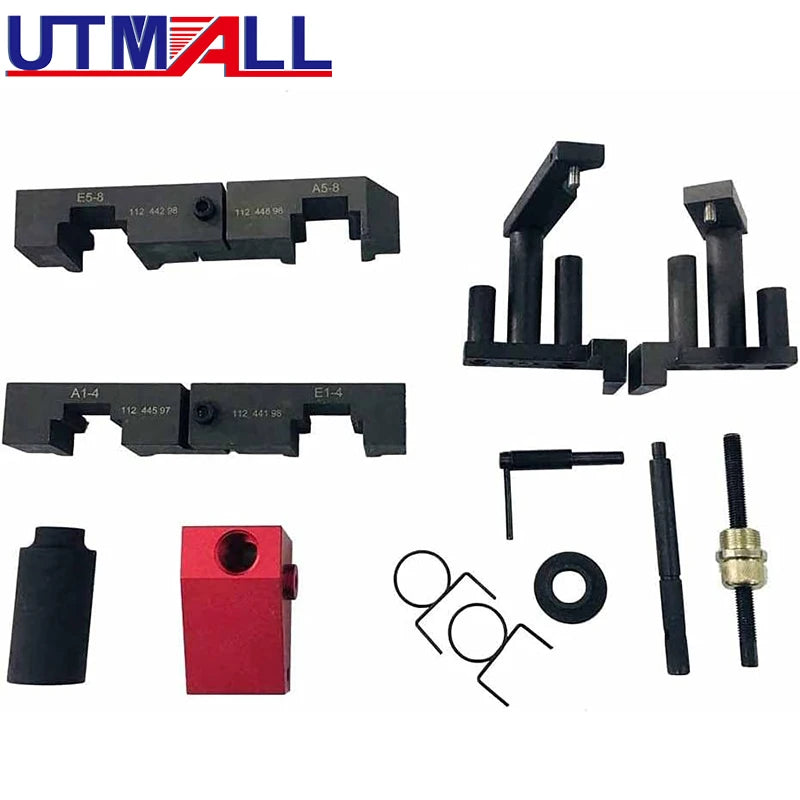

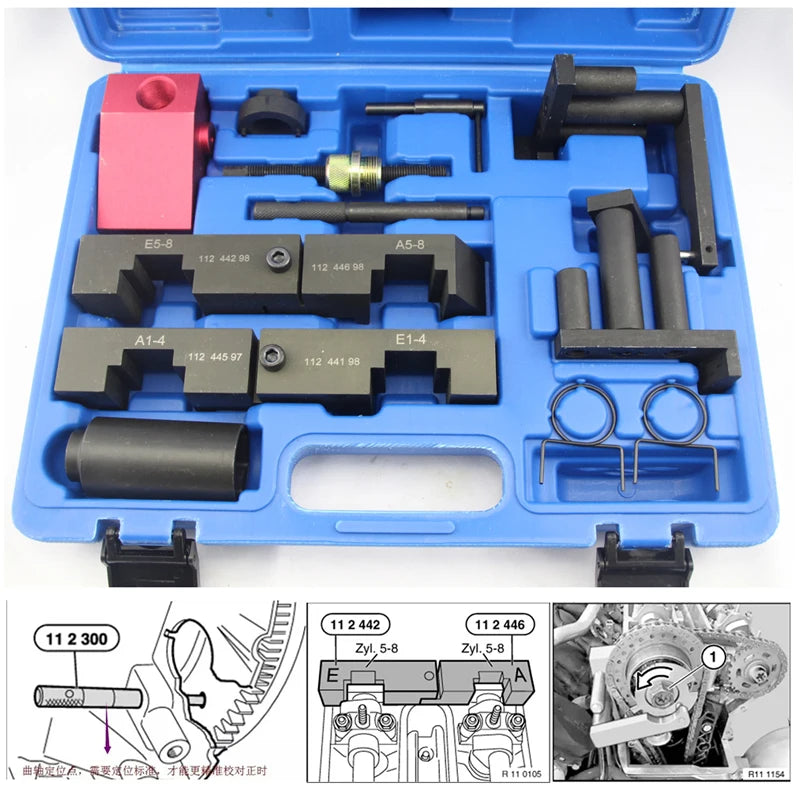

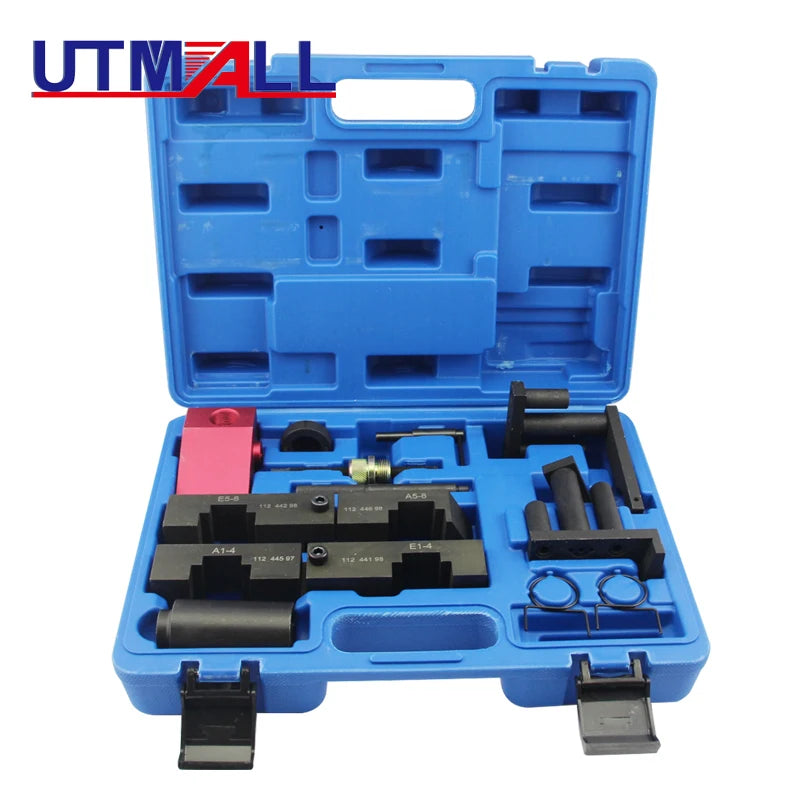

This tool kit contains all the necessary, engine-specific tools to time the camshafts in BMW M60 and M62 engines.

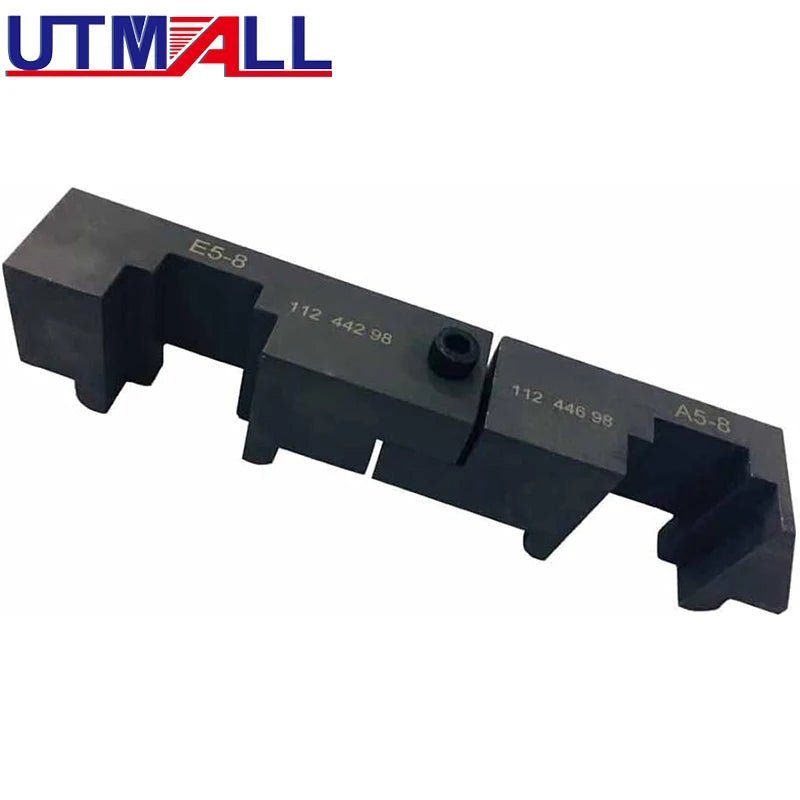

Includes: Two camshaft alignment jigs to fix the camshafts in the proper orientation during assembly.
(Ref. # 112300)Top dead center pin:
To align the flywheel at the TDC position.
(Ref. # 114230)Rigid chain tensioner:
Use to tension primary chain. Short format for late model V8 also for M3.

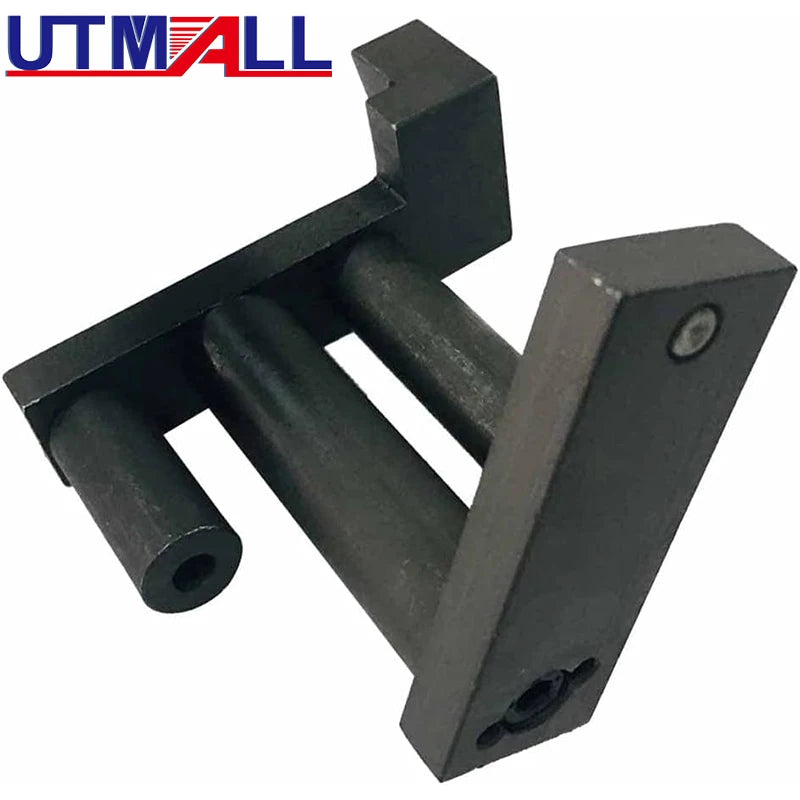

(Ref. # 116450)M62 VANOS Camshaft Timing Tool:
Two fixtures to lock the sensor wheels in place during timing of VANOS equipped M62 engines.
For: M62VANOS (1999-2002)
(Ref.# 116420)VANOS Electromagnetic Valve Socket:
Special deep, thin-wall 32-mm socket that is required to remove the electro-magnetic valve on 6 and 8 cylinder engines equipped with VANOS variable valve timing.
For: M54, M62VANOS

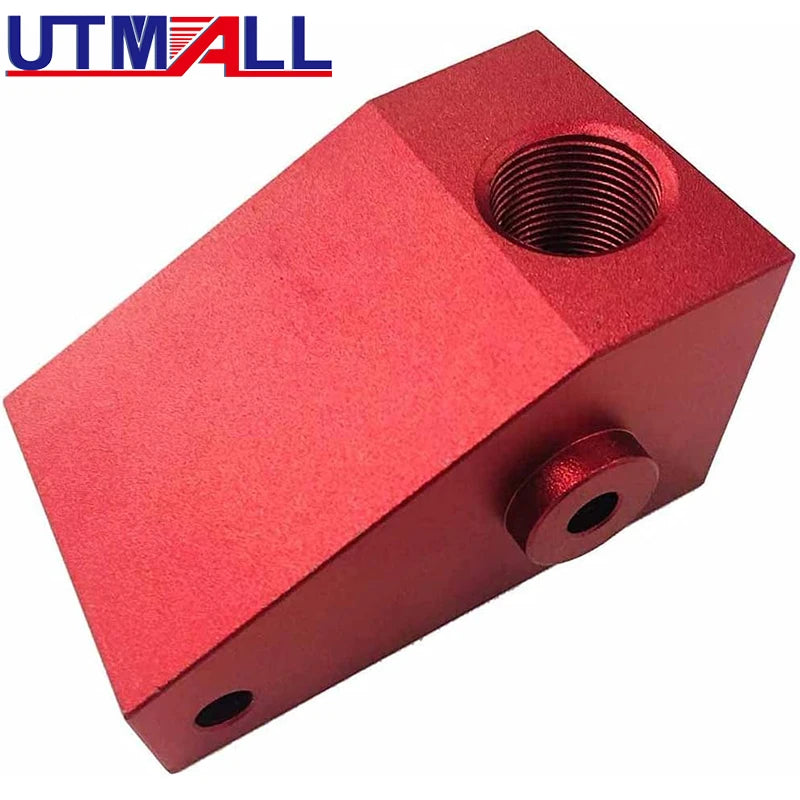

(*R)M62 Chain Tensioning Bracket Trestle:
Used to provide a mounting point for the rigid chain-tensioning tool while the front timing case is removed from the engine for servicing the timing-chain, servicing of VANOS components or adjusting cam timing.
For: BMW M60, M62
M60B30 M60B40
* 1993-1995 E34 530i * 1993-1995 E34 540i
* 1992-1994 E32 730i * 1992-1994 E32 740i
* 1994-1996 E38 730i * 1994-1996 E38 740i
* 1992-1996 E31 840i

M62B35
* 1996-1997 E39 535i M62TUB35
* 1994-1997 E38 735i/735iL * 1998-2001 E38 735i/735iL
* 1998-2003 E39 535i

M62B44
* 1996-1998 E39 540i M62TUB44
* 1994-1998 E38 740i/740iL * 1998-2003 E39 540i
* 1994-1999 E31 840Ci * 1998-2001 E38 740i/740iL
* 2000-2004 Morgan Aero 8
